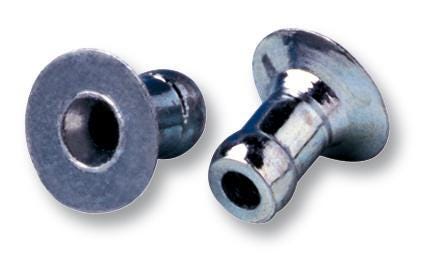

Briv 2.4 mm Aluminium 5%Mg Speed Fastener
SKU No
:
01801-00306
Briv 2.4 mm Aluminium 5%Mg Speed Fastener
Product description :
2.15-3.43 mm grip with 2.4 Nominal Diameter with 2.36-2.44 mm Hole Size and Aluminium 5%Mg Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
2.4
nominal Diameter
Aluminium 5%Mg
Material
Brand
natural
Finish
2.15
Min grip mm
3.43
Max grip mm
Min Grip Inches
0.08
Max Grip Inches
0.13503937007874017
Min Hole Size mm
2.36
Max Hole Size mm
2.44
Min Holes Size Inches
0.09291338582677165
Max Hole Size Inches
0.09606299212598425
Body Length mm
5.0
Body Length Inches
0.1968503937007874
Max Secondary Protrusion mm
2.35
Max Secondary Protrusion inches
0.09251968503937008
Flange Diameter mm
4.11
Flange Diameter inches
0.16181102362204727
Flange Thickness mm
0.89
Flange Thickness Inches
0.03503937007874016
Shear kN
0.27
Tensile kN
0.44
Shear lbf
60.6987
Tensile lbf
98.9164
Fasteners per Pod
52
