Nelson Stud Welding
Externally Threaded
CFL - Coarse fully threaded, solid flux

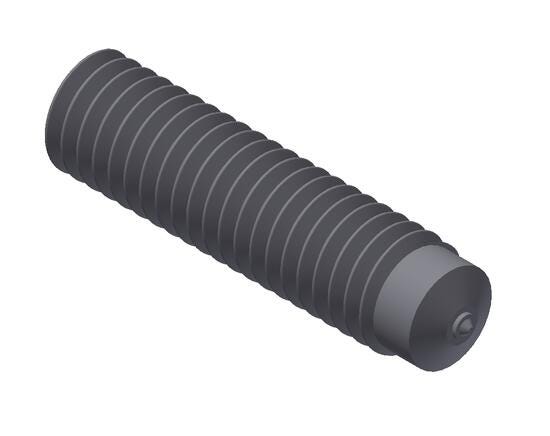

CFL 5/8-11 X 3 MS
SKU No
:
101010226
CFL 5/8-11 X 3 MS
Product description :
CFL 5/8-11 X 3 MS
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
0.625 inches
Height
0.625 inches
Width
Brand
3 inches
Length
0.218 Lb
Weight
Low Carbon Steel
Material (O)
Stud Dia
0.625 inches
Weld Base Dia
0.562 inches
Overall Length
3 inches
Weld Base Length
0.284 inches
Burn Off
0.187 inches
Thread Size
5/8-11 UN/UNF
Flash Dia
0.781 inches
Flash Thickness
0.187 inches
Related Ferrule
100101028.0
Related Chuck
500001016.0
Related Grip
501001011.0
Related Foot
502001138.0
Related HD Foot
502001002.0
