Nelson Stud Welding
Aluminum Studs

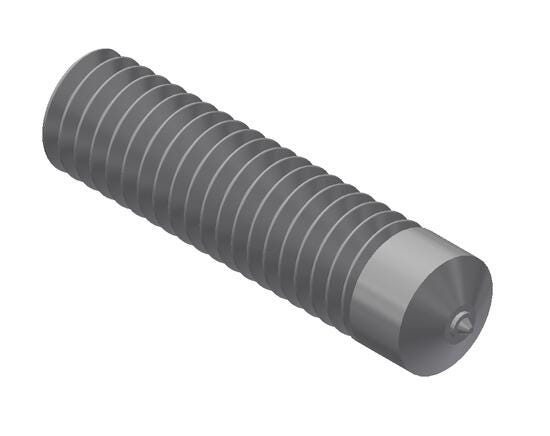

HBA - Aluminum, Full Base Diameter, Threaded
HBA 1/4-20 X 1 1/8 AL50 A
SKU No
:
101045043
HBA 1/4-20 X 1 1/8 AL50 A
Product description :
HBA 1/4-20 X 1 1/8 AL50 A
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
0.25 inches
Height
0.25 inches
Width
Brand
1.125 inches
Length
0.005 Lb
Weight
Aluminum
Material (O)
Stud Dia
0.25 inches
Weld Base Dia
0.25 inches
Overall Length
1.125 inches
Weld Base Length
0.312 inches
Burn Off
0.093 inches
Thread Size
1/4-20 UN/UNF
Flash Dia
0.406 inches
Flash Thickness
0.125 inches
Related Ferrule
100101047.0
Related Chuck
500001006.0
Related Foot
751020000.0
Show more Specifications
