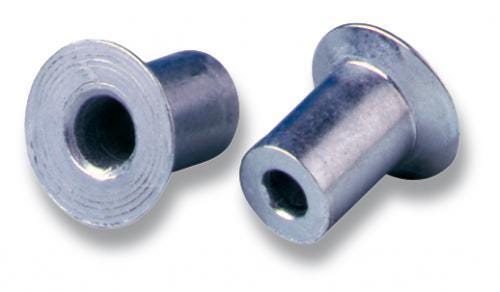

Chobert 3.2 mm Steel Speed Fastener
SKU No
:
01121-00406
Chobert 3.2 mm Steel Speed Fastener
Product description :
1.57-3.18 mm grip with 3.2 Nominal Diameter with 3.26-3.34 mm Hole Size and Steel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
3.2
nominal Diameter
Steel
Material
Brand
Zinc plated clear passivated
Finish
1.57
Min grip mm
3.18
Max grip mm
Min Grip Inches
0.06
Max Grip Inches
0.1251968503937008
Min Hole Size mm
3.26
Max Hole Size mm
3.34
Min Holes Size Inches
0.1283464566929134
Max Hole Size Inches
0.131496062992126
Body Length mm
4.8
Body Length Inches
0.1889763779527559
Max Secondary Protrusion mm
3.25
Max Secondary Protrusion inches
0.1279527559055118
Flange Diameter mm
5.47
Flange Diameter inches
0.21535433070866142
Flange Thickness mm
1.12
Flange Thickness Inches
0.044094488188976384
Shear kN
1.42
Tensile kN
No value
Shear lbf
319.23019999999997
Tensile lbf
No value
Fasteners per Pod
61
