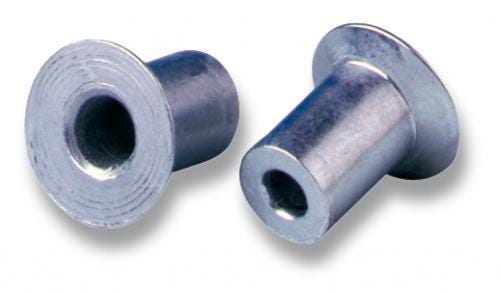

Chobert 4.8 mm Steel Speed Fastener
SKU No
:
01121-00613
Chobert 4.8 mm Steel Speed Fastener
Product description :
6.35-7.92 mm grip with 4.8 Nominal Diameter with 4.86-4.93 mm Hole Size and Steel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.8
nominal Diameter
Steel
Material
Brand
Zinc plated clear passivated
Finish
6.35
Min grip mm
7.92
Max grip mm
Min Grip Inches
0.25
Max Grip Inches
0.31181102362204727
Min Hole Size mm
4.86
Max Hole Size mm
4.93
Min Holes Size Inches
0.1913385826771654
Max Hole Size Inches
0.19409448818897637
Body Length mm
10.0
Body Length Inches
0.3937007874015748
Max Secondary Protrusion mm
4.85
Max Secondary Protrusion inches
0.19094488188976377
Flange Diameter mm
8.87
Flange Diameter inches
0.34921259842519686
Flange Thickness mm
1.78
Flange Thickness Inches
0.07007874015748032
Shear kN
3.2
Tensile kN
No value
Shear lbf
719.392
Tensile lbf
No value
Fasteners per Pod
25
Show more Specifications
