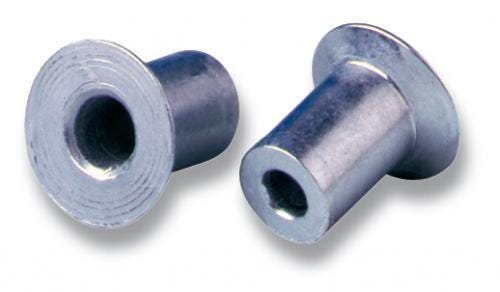

Chobert 6.4 mm Steel Speed Fastener
SKU No
:
01121-00809
Chobert 6.4 mm Steel Speed Fastener
Product description :
3.18-4.75 mm grip with 6.4 Nominal Diameter with 6.36-6.42 mm Hole Size and Steel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
6.4
nominal Diameter
Steel
Material
Brand
Zinc plated clear passivated
Finish
3.18
Min grip mm
4.75
Max grip mm
Min Grip Inches
0.13
Max Grip Inches
0.18700787401574803
Min Hole Size mm
6.36
Max Hole Size mm
6.42
Min Holes Size Inches
0.2503937007874016
Max Hole Size Inches
0.25275590551181104
Body Length mm
7.2
Body Length Inches
0.28346456692913385
Max Secondary Protrusion mm
6.35
Max Secondary Protrusion inches
0.25
Flange Diameter mm
10.44
Flange Diameter inches
0.4110236220472441
Flange Thickness mm
2.11
Flange Thickness Inches
0.08307086614173229
Shear kN
4.4
Tensile kN
No value
Shear lbf
989.1640000000001
Tensile lbf
No value
Fasteners per Pod
25
