SKU No : 07530-02100

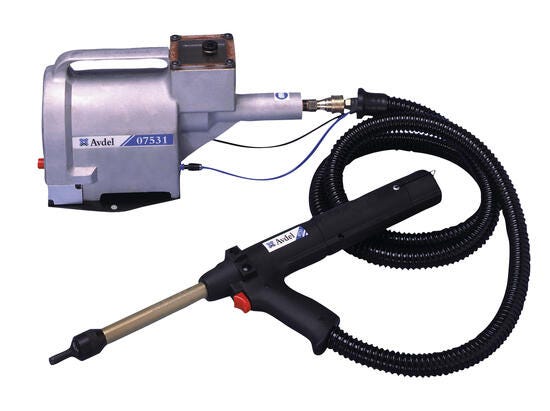

07530 MkII speed tool with Mechanical Cursor

Product description :

The 753 tool may be the solution to all your Avdel® speed fastener placement needs. The 753 is a high-performance, hydropneumatic hand tool, designed for rapid, blind-side installation of the Avdel® Speed Fastening® System. The 753 tool is the only one you need to place the whole range of Avdel® speed fasteners, apart from the 1.6 mm Avlug® which uses our 7536 tool. The 753 can fit 1500 fasteners per hour with the ability to work in hard-to-reach areas. Plus, the 753 has an extensive range of options to meet individual assembly needs.
163 mm
Height
60 mm
Width
Brand
475 mm
Length
1.2 kG
Weight
<1 Seconds
Cycle time
Vibration< 2.5 m/s2
Pull force3.89 kN
Stroke30 mm
Minimum aluminium fastener size2.4 mm
Minimum steel fastener size2.4 mm
Minimum stainless steel fastener size2.4 mm
