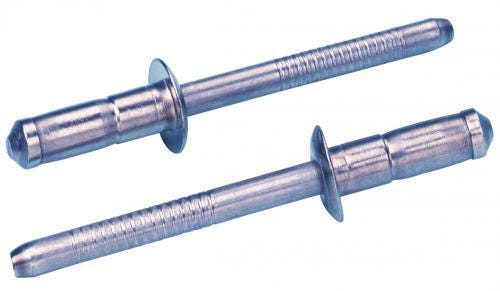

AVDEL 3.2mm [1/8] Stainless Steel / Stainless Steel Avinox Rivets
SKU No
:
0BE61-00408
AVDEL 3.2mm [1/8] Stainless Steel / Stainless Steel Avinox Rivets
Product description :
1-3 mm Grip with 3.2 mm Nominal Diameter in Dome Head Style with Stainless Steel Body Material and Stainless Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
1 - 3 Grip in Stainless Steel/Stainless Steel, Avinox Non-Structural Blind Rivets
Product name
3.2
Nominal Diameter mm
Brand
3.2mm [1/8]
Nominal Diameter Inches
Stainless Steel
Body Material
Stainless Steel
Mandrel Material
Finish-Body
Polished
Finish- Mandrel
None
Head Style
Dome
Min grip mm
1
Max grip mm
3
Min Grip Inches
0.039
Max Grip Inches
0.118
Min Hole Size mm
3.3
Max Hole Size mm
3.4
Min Holes Size Inches
0.13
Max Hole Size Inches
0.134
Max Body Length Inches
0.354
Max Secondary Protrusion mm
9.0
Max Secondary Protrusion Inches
0.354
Flange Diameter mm Max
6.6
Flange Diameter inches Max
0.26
Flange Thickness mm Max
1.1
Flange Thickness Inches Max
0.043
Shear kN
1.6
Tensile kN
2
Max Body Length mm
9.0
Shear lbf
360
Tensile lbf
450
Show more Specifications
