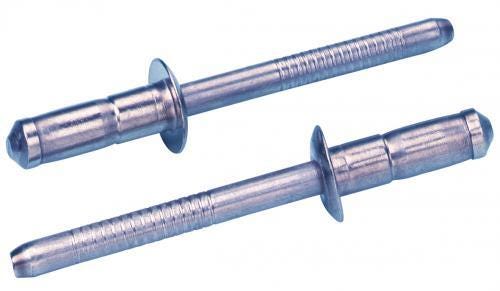

AVDEL 4.8mm [3/16] Stainless Steel / Stainless Steel Avinox Rivets
SKU No
:
0BE61-00618
AVDEL 4.8mm [3/16] Stainless Steel / Stainless Steel Avinox Rivets
Product description :
6-8.5 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Stainless Steel Body Material and Stainless Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
6 - 8.5 Grip in Stainless Steel/Stainless Steel, Avinox Non-Structural Blind Rivets
Product name
4.8
Nominal Diameter mm
Brand
4.8mm [3/16]
Nominal Diameter Inches
Stainless Steel
Body Material
Stainless Steel
Mandrel Material
Finish-Body
Polished
Finish- Mandrel
None
Head Style
Dome
Min grip mm
6
Max grip mm
8.5
Min Grip Inches
0.236
Max Grip Inches
0.335
Min Hole Size mm
4.9
Max Hole Size mm
5.1
Min Holes Size Inches
0.193
Max Hole Size Inches
0.201
Max Body Length Inches
0.724
Max Secondary Protrusion mm
18.4
Max Secondary Protrusion Inches
0.724
Flange Diameter mm Max
9.6
Flange Diameter inches Max
0.378
Flange Thickness mm Max
1.5
Flange Thickness Inches Max
0.059
Shear kN
5.5
Tensile kN
5
Max Body Length mm
18.4
Shear lbf
1236
Tensile lbf
1124
