SKU No : 73432-02000

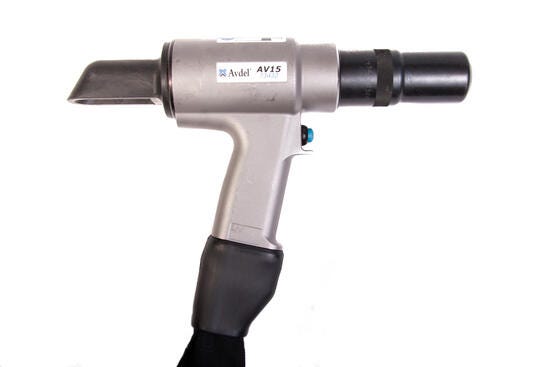

AV15

Product description :

The 734 AV series is a range of tools designed for high speed installation of large diameter Avdelok®, Avdelok® XT and NeoBolt® lockbolts, as well as Avbolt® fasteners. Designed for long working life in extreme conditions, these tools have a place in any assembly or construction environment. The range now includes the AV5, AV20, and AV25 tools, which have been engineered specifically for NeoBolt® fasteners, allowing the full application grip capability of these exceptional lockbolts to be realised. The 734 AV system consists of four separate parts: a placing tool, pump unit, hose, and easy-to-change nose equipment. The placing tools are robust and durable, while still being lighter weight, ergonomic, and highly manoeuvrable. Low maintenance pump units deliver the pull force required for secure, long lasting assembly at high speed. Easy-to-change nose equipment and hydraulic hoses in different lengths enable the tool to be adapted to suit local assembly requirements.
222 mm
Height
66 mm
Width
Brand
246 mm
Length
4.5 kG
Weight
80 dB(A)
Noise level
Vibration<2.5 m/s2
Pull force80 kN
Stroke32 mm
Minimum steel fastener size12.7 mm
Maximum steel fastener size12.7 mm
