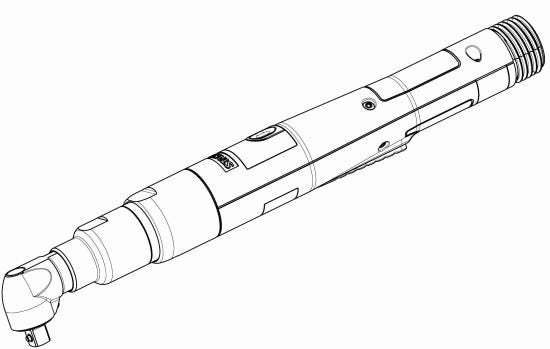

EB22LA13-13E EB Series Transducerized Nutrunner

Product description :

EB22LA13-13E Lever Start Corded Nutrunner With The Following Features: - Rated For 1.3 - 13 NM With A Recomended Working Range Of 2.6 - 10.4 NM - 155-1550 RPM - Right Angle Output with 26mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle- Extended Gearcase

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range2.6 - 10.4 NM

Useful Tool Range1.3 - 13 NM

Max Torque13.0

Min Speed (RPM)155.0

Max Speed (RPM)1550.0
