SKU No : EB22LC8-16

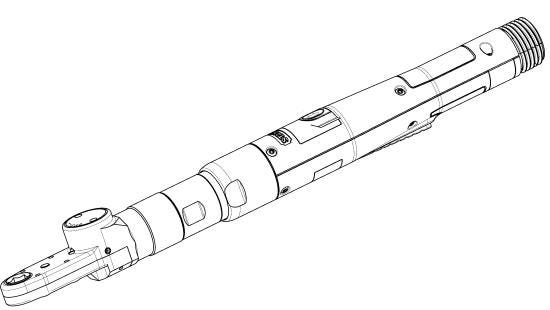

EB22LC8-16 EB Series Transducerized Nutrunner

Product description :

EB22LC8-16 Lever Start Corded Nutrunner With The Following Features: - Rated For 1.6 - 16 NM With A Recomended Working Range Of 3.2 - 12.8 NM - 90-895 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeCrowfoot
Recommended Working Range3.2 - 12.8 NM
Useful Tool Range1.6 - 16 NM
Max Torque16.0
Min Speed (RPM)90.0
Max Speed (RPM)895.0
