SKU No : EB33MA19F1-60R

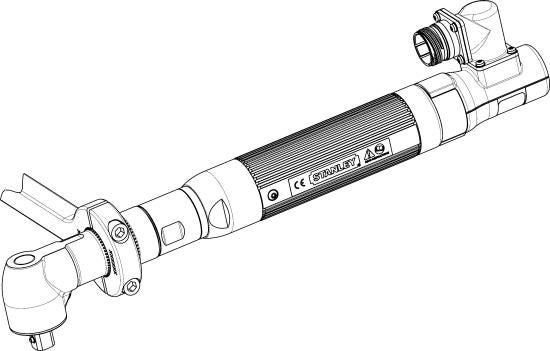

EB33MA19F1-60R EB Series Transducerized Nutrunner

Product description :

EB33MA19F1-60R Fixtured Corded Nutrunner With The Following Features: - Rated For 6 - 60 NM With A Recomended Working Range Of 12 - 48 NM - 68-680 RPM - Right Angle Output with 38mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 1 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeRight Angle
Recommended Working Range12 - 48 NM
Useful Tool Range6 - 60 NM
Max Torque60.0
Min Speed (RPM)68.0
Max Speed (RPM)680.0
