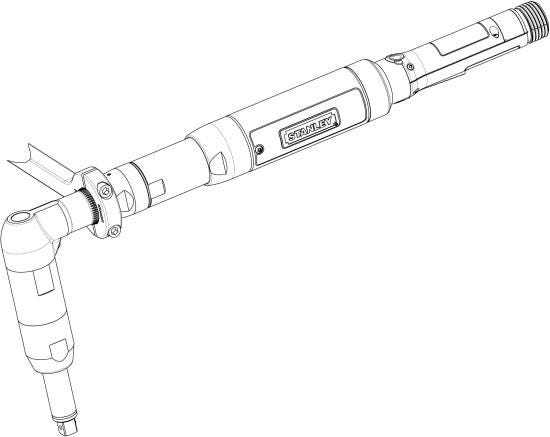

EB44LA22AF2-120 EB Series Transducerized Nutrunner

Product description :

EB44LA22AF2-120 Lever Start Corded Nutrunner With The Following Features: - Rated For 12 - 120 NM With A Recomended Working Range Of 24 - 96 NM - 55-550 RPM - 10 lb Tool Weight - Right Angle Output with 44mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle- 2 Inch Retraction

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range24 - 96 NM

Useful Tool Range12 - 120 NM

Max Torque120.0

Min Speed (RPM)55.0

Max Speed (RPM)550.0
