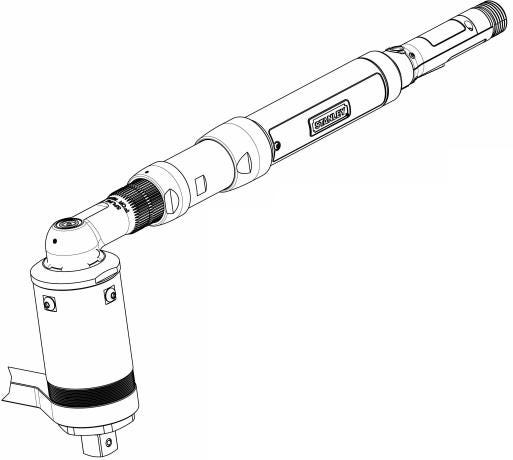

EB55LA26S0004-740 EB Series Transducerized Nutrunner

Product description :

EB55LA26S0004-740 Lever Start Corded Nutrunner With The Following Features: - Rated For 74 - 740 NM With A Recomended Working Range Of 148 - 592 NM - 12-120 RPM - Right Angle Output with 52mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range148 - 592 NM

Useful Tool Range74 - 740 NM

Max Torque740.0

Min Speed (RPM)12.0

Max Speed (RPM)120.0
