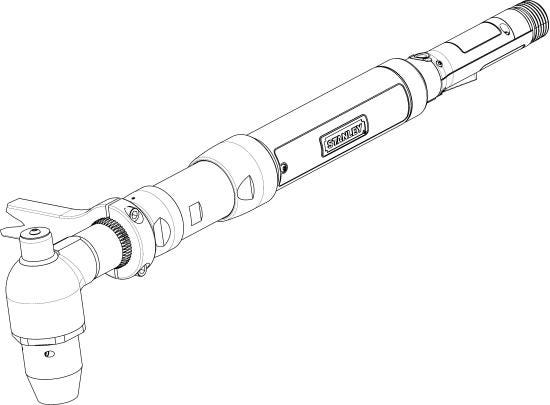

EB55LH32V2-285 EB Series Transducerized Nutrunner

Product description :

EB55LH32V2-285 Lever Start Corded Nutrunner With The Following Features: - Rated For 28.5 - 285 NM With A Recomended Working Range Of 57 - 228 NM - 34-340 RPM - 18 lb Tool Weight - Hold-n-Drive Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle- 2 Inch Retraction

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeHold-n-Drive

Recommended Working Range57 - 228 NM

Useful Tool Range28.5 - 285 NM

Max Torque285.0

Min Speed (RPM)34.0

Max Speed (RPM)340.0
