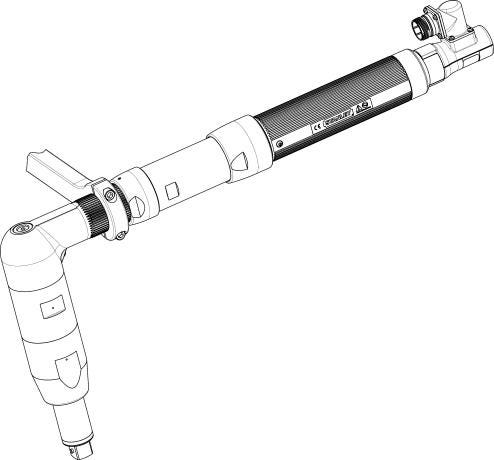

EB55MA32F2-400R EB Series Transducerized Nutrunner

EB55MA32F2-400R Fixtured Corded Nutrunner With The Following Features: - Rated For 40 - 400 NM With A Recomended Working Range Of 80 - 320 NM - 23-225 RPM - 21 lb Tool Weight - Right Angle Output with 64mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 2 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings
