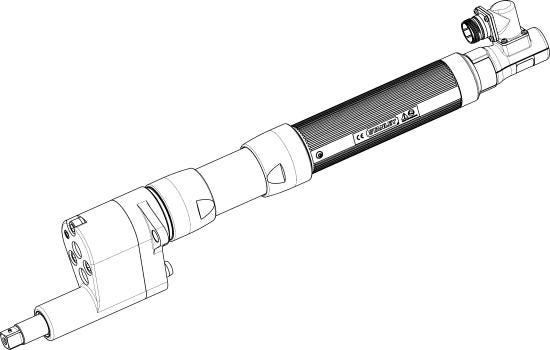

EB55MD2F1-150R EB Series Transducerized Nutrunner

Product description :

EB55MD2F1-150R Fixtured Corded Nutrunner With The Following Features: - Rated For 15 - 150 NM With A Recomended Working Range Of 30 - 120 NM - 64-640 RPM - Offset Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 1 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Fixtured

Handle Type

Output TypeOffset

Recommended Working Range30 - 120 NM

Useful Tool Range15 - 150 NM

Max Torque150.0

Min Speed (RPM)64.0

Max Speed (RPM)640.0
