MONOBOLT®
MONOBOLT® 4.8mm [3/16] (6) Steel / Steel Structural Rivet Nuts
SKU No
:
SSPV-E06-07

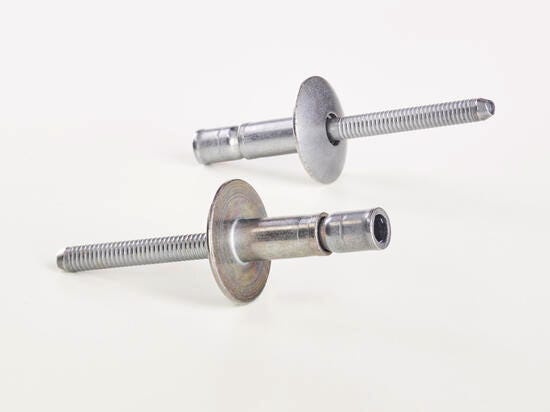

MONOBOLT® 4.8mm [3/16] (6) Steel / Steel Structural Rivet Nuts
Product description :
1.63-11.1 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Dome Head Style with Steel Body material and Steel Mandrel material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
1.6256-11.0998 mm Steel/Steel Monobolt Structural Blind Rivets
product name
Steel
Body Material
Brand
Steel
Mandrel Material
Zinc Plate
Finish-Body
Zinc Plate Zinc Trivalent
Finish- Mandrel
Head Style
Dome
Min grip mm
1.63
Max grip mm
11.1
Min Grip Inches
0.064
Max Grip Inches
0.437
Min Hole Size mm
4.93
Max Hole Size mm
5.18
Min Holes Size Inches
0.194
Max Hole Size Inches
0.204
Max Body Length mm
14.66
Max Body Length Inches
0.577
Flange Diameter mm
10.16
Flange Diameter inches
0.4
Flange Thickness mm
2.29
Flange Thickness Inches
0.09
Shear lbf
1300
Tensile lbf
1000
Show more Specifications
